How to use the heaters in the Main Hall

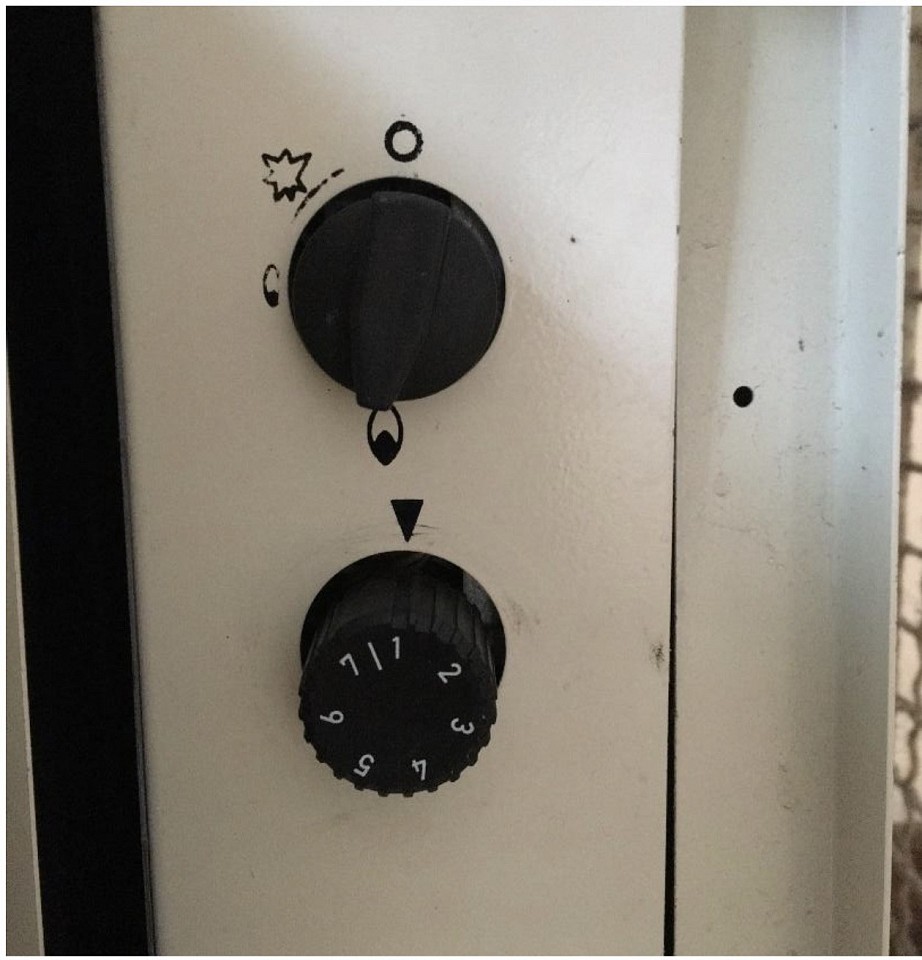

Heaters One and Three

To light the pilot (Check that it isn't already lit before doing this)

1) Make sure top button is pointing to 0

2) Make sure bottom button is on number 1

3) Press top button in and twist it slowly anticlockwise to the picture of a small flame you will hear a loud click.  Check to see if there is a flame, if there isn't a flame turn back to 0 and turn anticlockwise again until you see one, then keep the buttons pressed in and count to 30.

4) Release button and fully turn anti clockwise to picture of large flame.

To turn up if there is already a pilot light.

1) Turn top button to the larger flame (if not already on it)

2) Turn bottom button to a higher number, you should hear the main burner light with a whoosh

To turn down at the end of your hire.

Turn bottom control knob clockwise to number (1) Then turn top knob to the little flame. this leaves it ready for the next hire to turn up again without lighting the pilot.

Heaters 1 and 3

Heaters 1 and 3

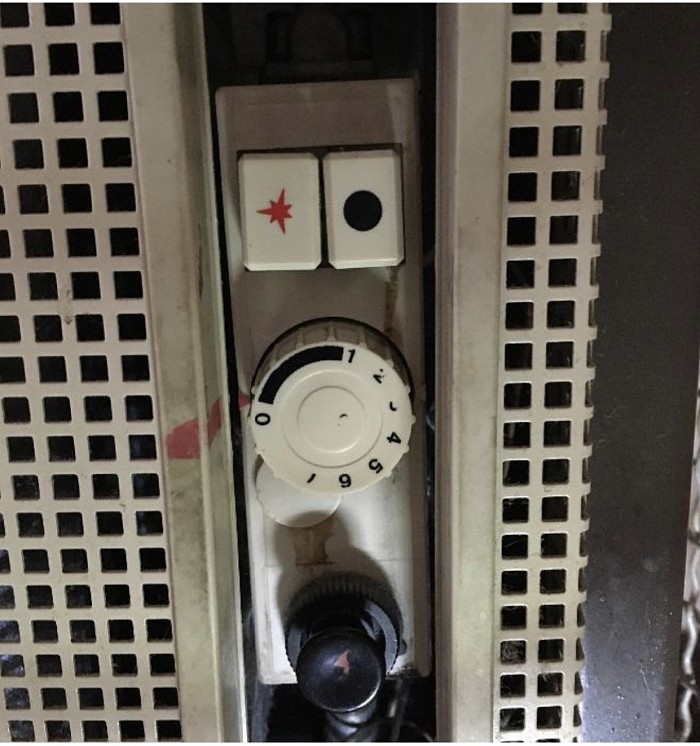

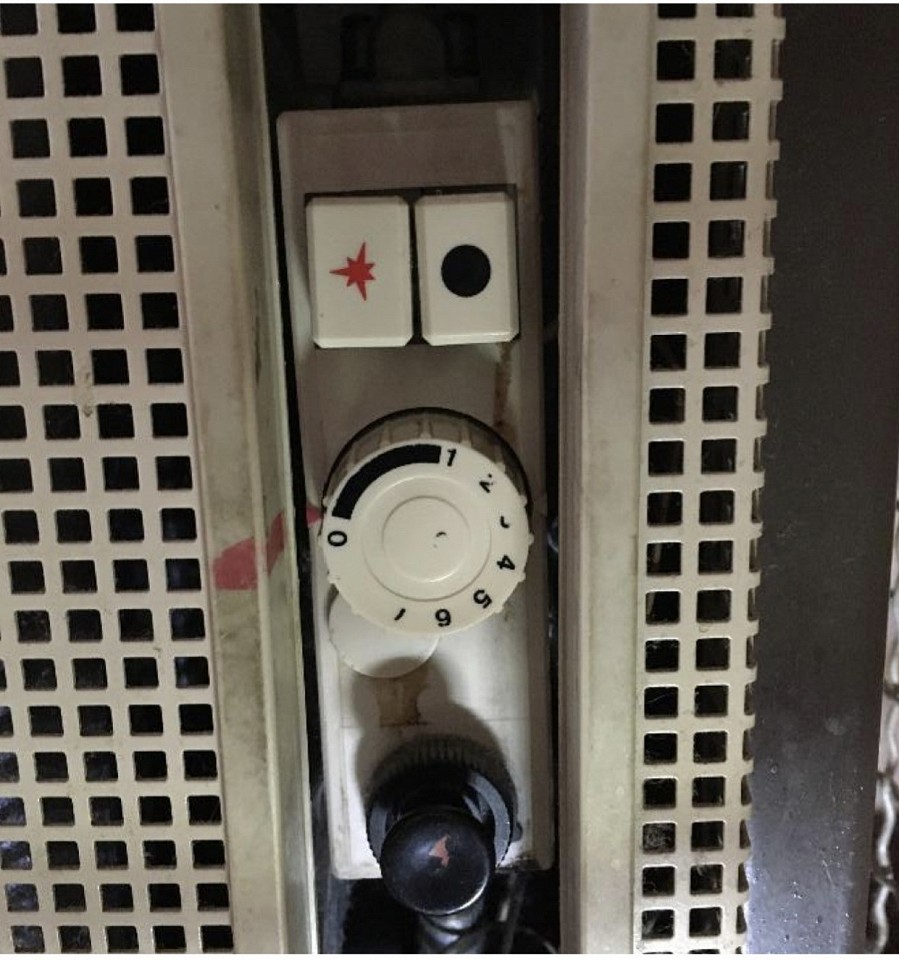

Heater Two

To light the pilot (Check that it isn't already lit before doing this)

Make sure middle control knob is switched to 0

1 Push in fully top left-hand button (marked with red flash) and with the other hand flick in and out the bottom black button.

2 Whilst doing this look into the pilot window to the left of the bottom button. When you see a small flame there you can stop flicking the black button but keep the top left-hand button pressed in to a count of 30.

3 Release the top button you should still be able to see the pilot light through the small glass window.

How to increase the heat if the pilot light is already lit.

1) Turn middle control knob anti clock wise to desired number, you should hear the main flame light with a whoosh.  If nothing check the pilot and got to step 1.

To completely switch main flame and pilot off

Turn middle control knob clockwise to 0 then push top right hand black dotted button in fully and release.

Heater 2

Heater 2
